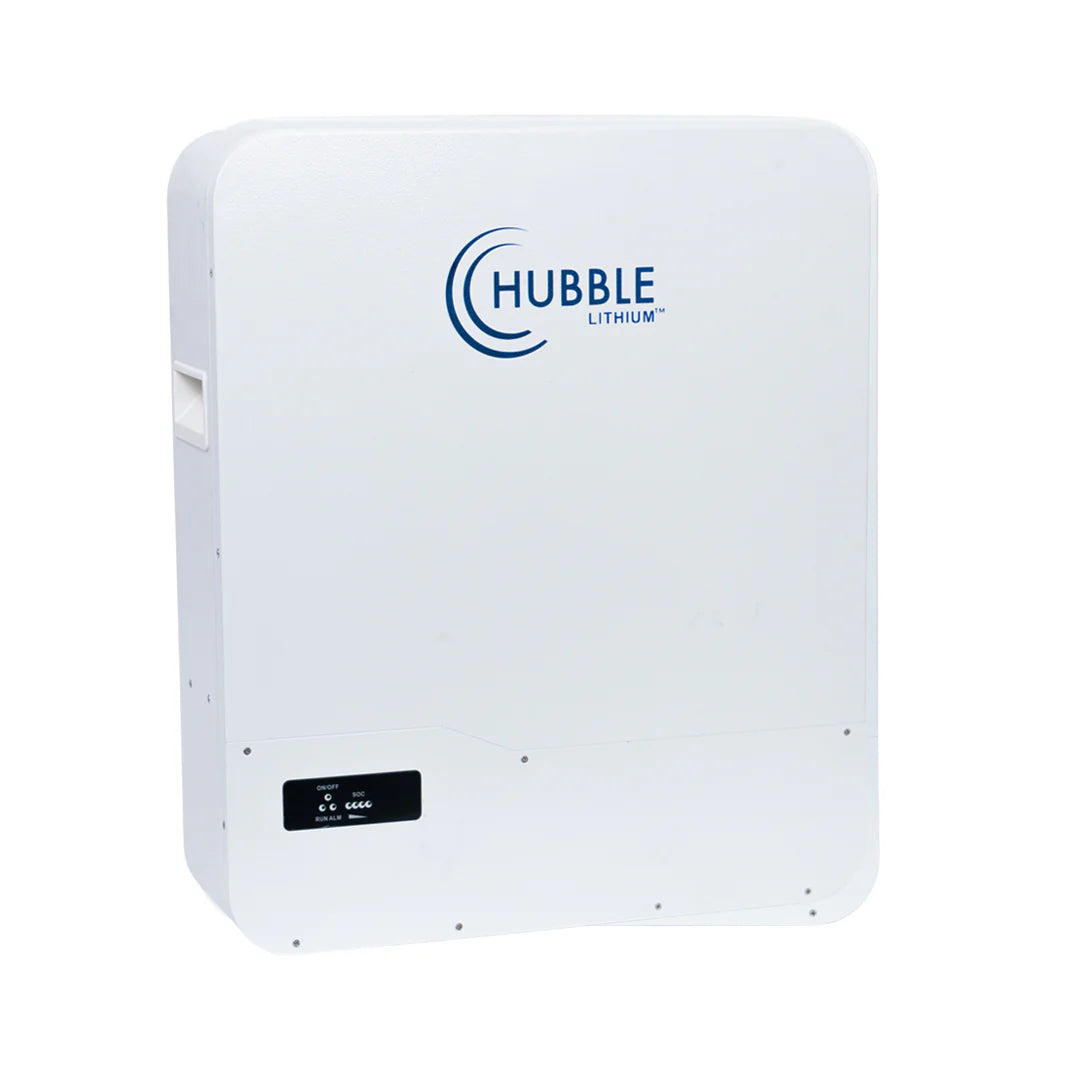

Hubble AM5 5.1 kWh Lithium Battery

Hubble AM5 5.1 kWh Lithium Battery

ZMW44.448
ZMW44.448
Sale Sold out
This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. Amperion - SunStore will not be held liable for any product malfunctions as a result of incorrectly installed systems.


The Hubble Lithium's AM5 model is a 51V (suitable for 48V systems) LiFePO4 battery pack suitable for off-grid, back-up and self-consumption residential energy systems.

The AM-5 is the first of its series to have LiFePO4 prismatic cells, featuring a 5.12kWh system capacity as well as monitoring capabilities via the Hubble Cloudlink.

Features:

      • Modular design for ease of expansion
      • Can be either rack- or wall-mounted
      • Parallel Capability of up to 8 units
      • Compatible with e.g. Victron, SunSynk or Kodak inverters (see manual)
      • Remote monitoring via the optional Hubble Cloudlink device
      • Comes with a 10-year warranty

Specifications:
      • Capacity 5.1 kWh
      • Rated capacity in Ah: 100 Ah
      • Weight: 51 kg
      • Battery Type: Lithium Iron Phosphate (LiFePO4)
      • Voltage: 51V (suitable for 48V systems)
      • C-rating: 1C
      • Dimensions: 509.62mm x 173mm x 599.67mm
      • Maximum (Dis)charge Current: 100A
