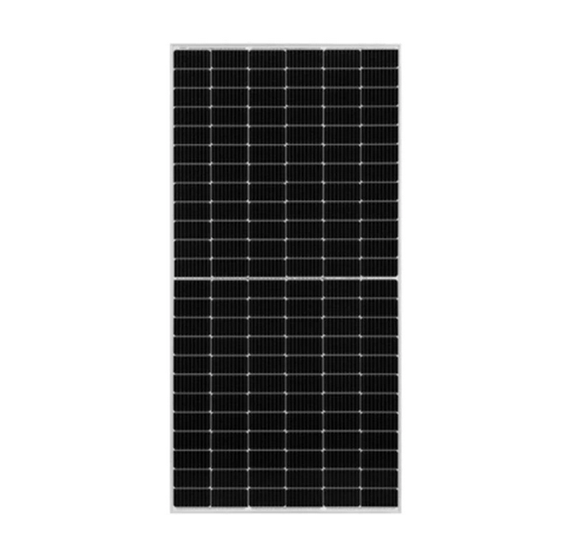

JA Solar 500W Mono PERC Half-Cell MBB Silver Frame MC4

~ Please note: minimum order 3 panels ~
~ Contact us for orders below 3 panels ~

Contact us if the panels indicate 'Not Available'.  We will confirm stock availability via email

This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. Amperion - SunStore will not be held liable for product malfunctions due to incorrectly installed systems.

JA Solar is classified as a Tier-1 module manufacturer.

JA Solar Panel 500Wp Mono MBB Percium Half-Cell Silver Frame MC4

JA Solar has been the world's leading cell producer since 2010 and has firmly established itself as a tier 1 module supplier since 2012.

Assembled with multi-busbar PERC cells, the half-cell configuration of the modules offers the advantages of higher power output, better temperature-dependent performance, reduced shading effect, lower risk of hot sport, as well as enhanced tolerance for mechanical loading.

- Rating: 500W

- Height x Width: 2,120mm x 1,052mm

- Efficiency: 20.4%

- Voc: 49.85 V

- Vmp: 41.82 V

- Imp: 10.88 A

- Isc: 11.41 A

- Weight: 25 kg

 - High output power

- Less shading effect

- Lower temperature coefficient

- Better mechanical loading tolerance

 - 12-year product warranty

- 25-year linear power output warranty.

Please note this module has a Silver Frame and White Back-sheet. The panel comes supplied with MC4 connectors and 1200 mm long cables.

 This is a mono-crystalline panel with higher efficiency (Click here for a Comparison between poly-crystalline and mono-crystalline panels).

 For tips on buying solar panels, click on this video link

View Data Sheet JA Solar 455Wp Mono Panel
View JA Solar Panel Warranty

This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. Amperion - SunStore will not be held liable for any product malfunctions as a result of incorrectly installed systems.
