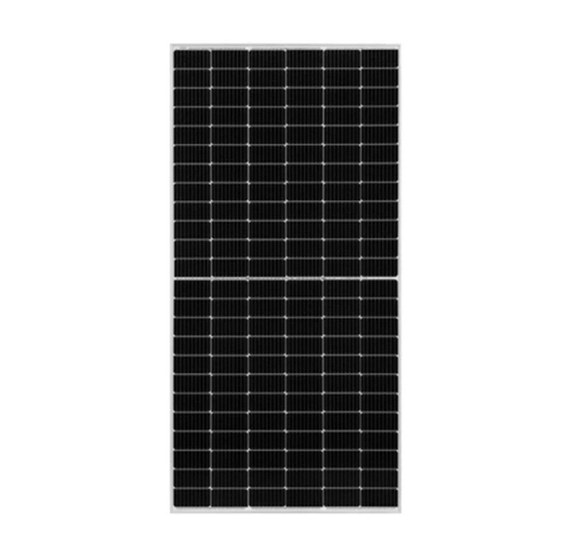

JA Solar Integrated 505W Mono PERC Half-Cell MBB Silver Frame TS MC4 Connectors

~ Please note: minimum order 3 panels ~
~ Contact us for orders below 3 panels ~

Contact us if the panels indicate 'Not Available'.  We will confirm stock availability via email

This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. Amperion - SunStore will not be held liable for product malfunctions due to incorrectly installed systems.

JA Solar is classified as a Tier-1 module manufacturer.

Product Features:

• Higher output power (505W).
• Lower levelized cost of energy (LCOE).
• Better shading tolerance.
• Enhanced tolerance for mechanical loading.
• 15-year product warranty and 25-year linear power output warranty.

Comes supplied with staubli MC4 connectors.

Specifications:

Weight: 25 kg

Rated Power: 505 W

MCS Reference: BABT 8515-219-505W

Length:  2,093 mm

Width: 1,134 mm

Depth: 30 mm

VMPP: 38.53 V

IMPP:  13.11 A

Isc:  14 A

Voc:  45.72 V

Temp. Coefficient (Mpp):  -0.35 %

Clamp position on panel: Long and short side

Connector Type: MC4

Efficiency: 21.3 %

Pallet Size: Oversized

 This is a mono-crystalline panel with higher efficiency (Click here for a Comparison between poly-crystalline and mono-crystalline panels).

 For tips on buying solar panels, click on this video link

View JA Solar Panel Warranty

This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. Amperion - SunStore will not be held liable for any product malfunctions as a result of incorrectly installed systems.
